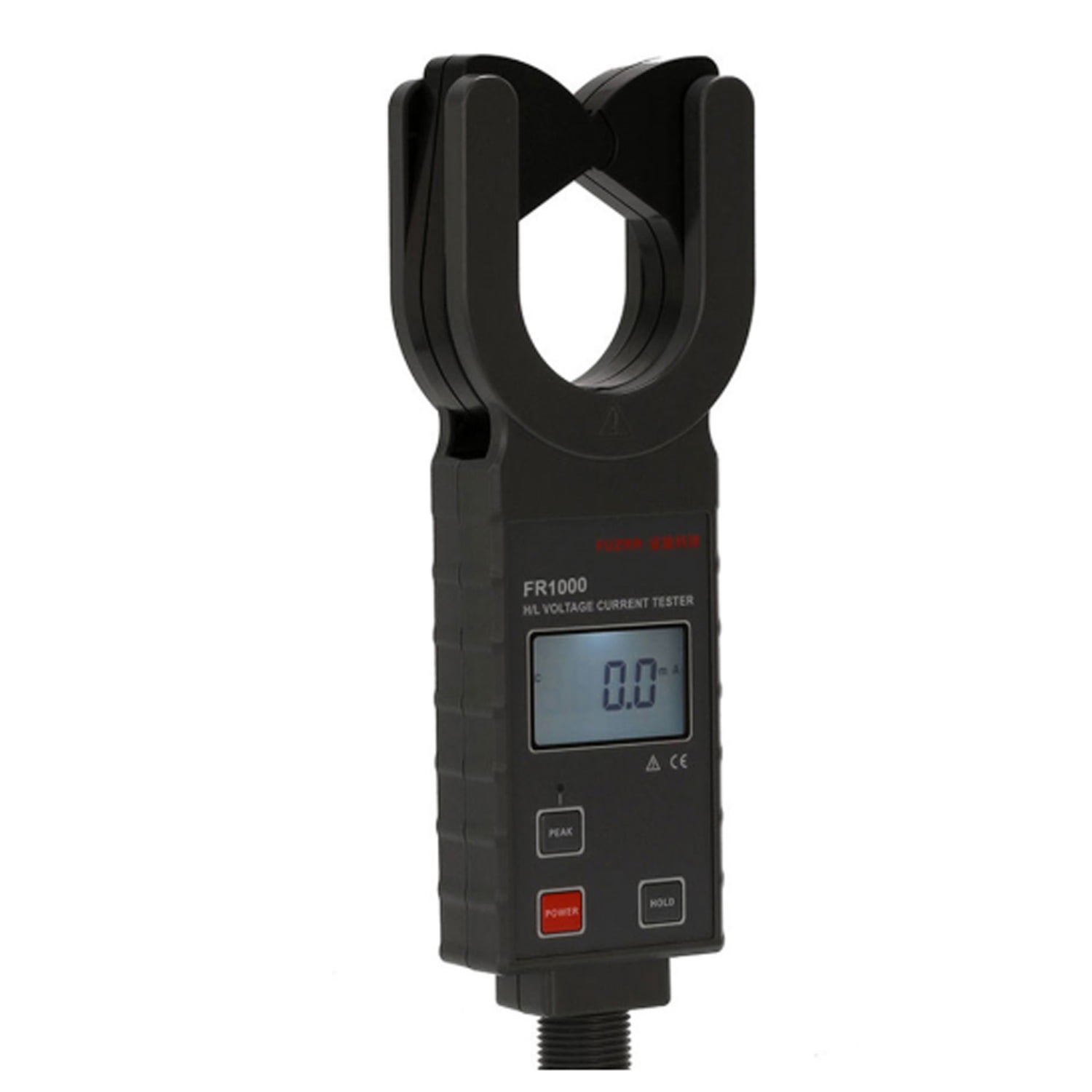

1200A Digital High Voltage Clamp Meter FR1000

<p>Inside the clamp ammeter, a integrated circuit is used, and an insulating rod is used to measure the current of a high voltage line with insulation sheath below 60 kV or bare wire below 35 kV . </p><p>When not using the insulation rod, it can also be used as a high-precision low-voltage clamp ammeter, leakage current meter, can accurately split out the current or leakage current of 0.1mA.</p><p>It is easy to use and carry. Equipped with telescopic insulation rod, it is easy to carry and use.</p>

• Range：0.0mA~1200A Auto Range
• Resolution：0.1mA
• Clamp Diameter：Φ50mm
• Accuracy：±2%±5dgt
• Sampling Speed：About 2 times/second
• Function：High-low voltage current measurement
• Power Supply：DC6V Alkaline Dry Battery (1.5V AAA X 4) Not included
• Test Method：Clamp CT, Integral Method
• Meter Dimension：W/T/H: 87mm×37mmx262mm
• LCD Dimension：47mm×31mm
• Total Weight：2.5Kg (including insulation rod.)
• Overflow Display：Exceed measurement range overflow function: “OL ” symbol display
• Data Storage：99 Groups
• Data Storage Full：the symbol “FULL” mark will flash to indicate the memory has been full.
• Battery Voltage：When the battery voltage is below 5.2V, the symbol of battery voltage is low will show
• Insulated Rod：1m/Section（5 Sections）
• Insulation strength：AC 60KV/rms
• Circuit Test：Insulation sheath wire test below 60kV line voltage, bare wire test under 35kV (with insulation rod operation)
• Work Temperature：-10℃～40℃
• Storage Temperature：-10℃～60℃
• Humidity：0℃～31℃≤75%, 31℃～40℃≤50%
• Suitable for safety regulations：EC1010-1, IEC1010-2-032, Pollution Level 2, CATⅢ(600V) IEC61326 (EMC Standard)
